Detailed introduction

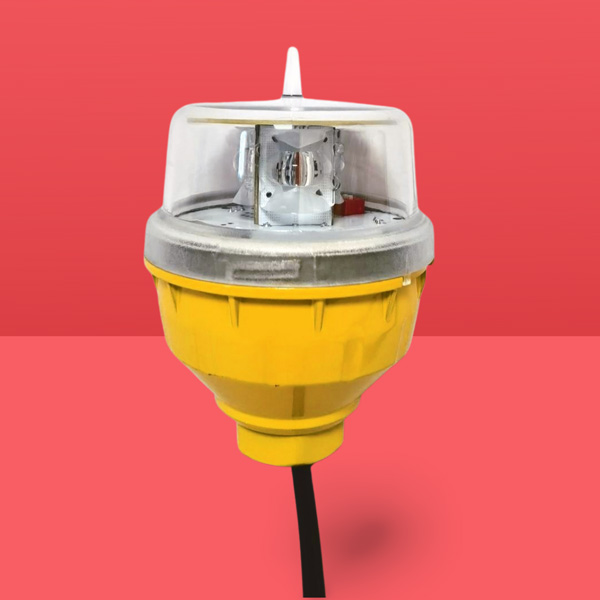

The L 810 LED obstruction light is a crucial component in ensuring aviation safety. As a low intensity obstruction light, it is designed to mark obstacles that could pose a hazard to aircraft.
This type of light is often used for tower obstruction lighting. It meets the FAA L 810 standard, which ensures its reliability and effectiveness. The L 810 LED obstruction light emits a visible signal that alerts pilots to the presence of towers and other obstructions.
These lights are essential for aircraft warning. They help pilots navigate safely by making potential hazards clearly visible, even in low light conditions. The LED technology used in these obstruction lights offers several advantages. They are energy-efficient, have a long lifespan, and provide consistent illumination.
The low intensity of the L 810 LED obstruction light is carefully calibrated to be visible without being overly distracting. This balance is important to ensure that pilots can easily identify the obstruction without being overwhelmed by excessive brightness. Overall, these lights play a vital role in safeguarding air travel by providing a reliable warning system for pilots.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Utilize super bright CREE brand LEDs, offering high intensity while consuming less energy.
2. The input voltage is available in either DC (12 - 48V DC) or AC (100 - 265V AC, 50 - 60Hz).
3. The obstruction light features a unique design and a UV-protected polycarbonate cover for protection.
4. The efficient photometric design ensures excellent light distribution, guaranteeing compliance with ICAO and FAA requirements.
5. The base material is die-cast aluminum, which has strong corrosion resistance, provides protection against shock and vibrations, and offers a long service life.
6. It is a no-screw fix type – simply twist and the cover will be tightly fixed.
7. Equipped with a built-in photocell for operation during both day and night.
8. Offers surge and lightning protection.
9. Installation is via a 3/4 inch pipe thread.
Specification:
|
Product Name |
l 810 led obstruction light low intensity obstruction light faa l 810 tower obstruction lighting aircraft warning light |
|
Mode NO.: |
AO-LI-B1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
LED life time
|
100000hrs |
|
Light Intensity(cd): |
>32.5cd (other 10cd, 100cd as optional) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable by DIP switch
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<3W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.3kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

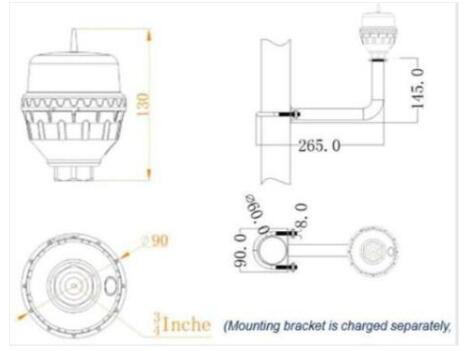

Dimension & Installation:
Applications:
The L 810 LED obstruction light is a crucial tool in the field of aviation safety. As a low intensity obstruction light, it is designed to meet the specific requirements of the FAA L 810 standard for tower obstruction lighting.
These lights are widely used on towers and other structures that pose a potential hazard to aircraft. The LED technology provides a bright and reliable source of illumination, making the obstruction easily visible to pilots. The low intensity setting is ideal for situations where a more subtle warning is needed, without being overly distracting.
In addition to tower obstruction lighting, the L 810 LED obstruction light can also be used as an aircraft warning light. The distinctive flashing pattern and color of the light serve as a clear signal to pilots, alerting them to the presence of an obstacle in their flight path.
The durability and reliability of these lights make them suitable for use in a variety of environments. The UV-protected polycarbonate cover and die-cast aluminum base ensure resistance to corrosion, shock, and vibrations, providing long service life even in harsh weather conditions.
The built-in photocell allows for automatic operation during both day and night, while the surge and lightning protection features offer added safety and reliability. Installation is straightforward with the 3/4 inch pipe thread, making it easy to mount on towers and other structures. Overall, the L 810 LED obstruction light is an essential component in ensuring the safety of air travel.
