Medium intensity aviation light aviation light for tower crane l 864 obstruction light type B aviation obstruction light red obstacle light
Detailed introduction
Medium intensity aviation light for tower crane, also known as type B aviation obstruction light, is an essential safety device. The 864 obstruction light in red is designed to alert aircraft pilots to the presence of tall structures like tower cranes.
These lights are crucial for preventing collisions between aircraft and tower cranes. They emit a distinct red glow that can be easily spotted from a distance. The medium intensity ensures visibility even in various weather conditions.
The aviation light is carefully engineered to meet strict aviation safety standards. It is durable and reliable, capable of withstanding harsh environmental elements. Installed on tower cranes, it provides a continuous visual indication to approaching aircraft.
The design of these lights takes into consideration factors such as brightness, flash pattern, and power consumption. They are energy-efficient while still maintaining a high level of visibility. The red color is specifically chosen as it is highly visible against the sky and other backgrounds.
In conclusion, the medium intensity aviation light for tower crane, specifically the 864 obstruction light type B in red, plays a vital role in safeguarding airspace and ensuring the safety of both aircraft and ground structures. It is an important component of aviation safety measures and helps to prevent potentially disastrous collisions.
Overview:
Aviation obstruction light Type B and Type C medium intensity light L-864 AO-MI-B2 is red in color and operates at night. In accordance with ICAO and FAA regulations, this medium intensity aviation obstruction light is specifically designed for marking the top of obstacles with a height ranging from 45 to 105 meters. Moreover, this L864 obstruction light is required to continuously flash at a rate of 20 to 60 flashes per minute during nighttime. We utilize high-intensity CREE LEDs as the light source, ensuring stable quality and a long service life. Medium intensity aviation light aviation light for tower crane l 864 obstruction light type B aviation obstruction light red obstacle light
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864.
Features:
1. Utilize super bright CREE brand LEDs, offering high intensity while consuming less energy.
2. The input voltage is available in either DC (12 - 48V DC) or AC (100 - 265V AC, 50 - 60Hz).
3. The obstruction light protective cover features a unique design and is made of UV-protected polycarbonate.
4. The efficient photometric design provides excellent light distribution, ensuring compliance with ICAO and FAA requirements.
5. The base material is die-cast aluminum, which has strong corrosion resistance and provides protection against shock and vibrations, ensuring a long service life.
6. A special valve is installed under the base to allow air to pass through while preventing water ingress. This helps to keep the temperature of the entire Type B medium intensity aviation obstruction light from getting too high.
7. Equipped with a built-in photocell for daytime and night operation.
8. Offers surge and lightning protection.
9. Various optional functions are available, such as GPS synchronous flashing, sequence flashing, alarm relay, and more.
Specification:
|
Product Name |
Medium intensity aviation light aviation light for tower crane l 864 obstruction light type B aviation obstruction light red obstacle light |
|
Mode NO.: |
Type B: AO-MI-B2; Type C: AO-MI-C2 |
|
Color: |
Red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
Type B: 2,000cd±25% (Night) Type C: 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Type B: 20-60FPM, Type C: Fixed Lighting.
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<15W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

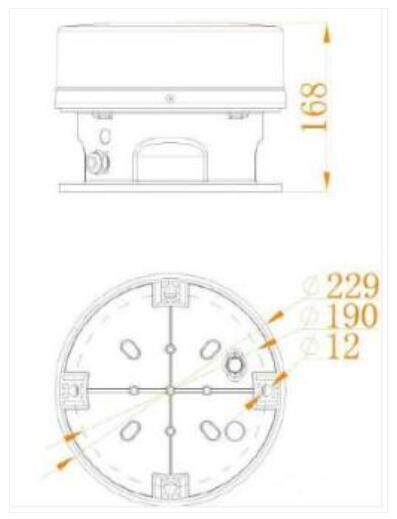

Dimension & Installation:
Applications:
The Medium intensity aviation light for tower crane, specifically the L864 obstruction light type B in red, is a crucial safety feature with significant applications in the field of aviation and construction.
In the construction industry, tower cranes are often erected to great heights. These cranes pose a potential hazard to aircraft if not properly marked. The L864 obstruction light is designed to address this concern. By emitting a distinct red glow, it alerts pilots to the presence of the tower crane from a distance. This helps prevent collisions and ensures the safety of both air traffic and construction activities.
The medium intensity of this aviation light is carefully calibrated to meet international aviation standards. It is visible even in various weather conditions, including fog, rain, and low visibility. The light is engineered to be highly reliable and durable, capable of withstanding the harsh environmental conditions often encountered at construction sites.
Installed on tower cranes, the L864 obstruction light operates continuously. Its consistent flashing pattern at a specific rate provides a clear indication to approaching aircraft. The light is designed to be energy-efficient, minimizing power consumption while maintaining its effectiveness.
In addition to its role in tower cranes, this aviation obstruction light can also be used for other tall structures such as communication towers and wind turbines. It helps ensure the safety of airspace by providing a visible warning to pilots.
Overall, the Medium intensity aviation light for tower crane L864 obstruction light type B is an essential safety device that plays a vital role in protecting airspace and ensuring the smooth operation of construction projects and other tall structures.
